SmartFeed™ Units

Model 1200 EM

  • Process up to 1,200 gpm slurry flow
  • Condition up to 12% dry solids raw feed
  • Deliver up to 70 gpm of .5% polymer dilution

Site Requirements:

  • 6″ pipe connection for slurry feed
  • 2″ pipe connection 100 gpm @ 80 psi
  • Power 60 amps 480 volts 3 phase
  • Lay-down area 40′ x 12′

Model 2500 EM

  • Treats up to 2,500 gpm slurry flow
  • Process slurry up to 12% dry solids
  • Can deliver up to 400 gpm of .5% polymer dilution

Site Requirements:

  • 8″ pipe connection for slurry feed
  • 4″ pipe connection 400 gpm @ 80 psi
  • Power 100 amps 480 volts 3 phase
  • Lay-down area 40′ x 30′

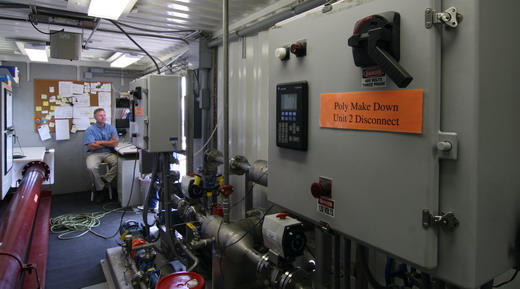

Model 4000 EM

  • Treats up to 4,000 gpm slurry flow
  • Process slurry up to 25% dry solids
  • Can deliver up to 1,200 gpm of .5% polymer dilution

Site Requirements:

  • 12″ pipe connection for slurry feed
  • 4″ pipe connection 600 gpm @ 80 psi “dilution water”
  • 4″ pipe connection 600 gpm @ 80 psi “post-dilution “
  • Power 200 amps 480 volts 3 phase
  • Lay-down area 80′ x 40′

For more information about the SmartFeed™ units and their capabilities, download the PDF flyer.
